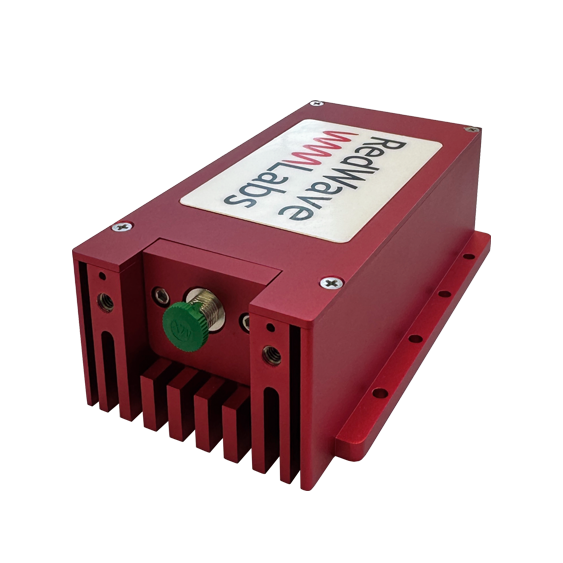

The RedWave Labs AD300 InGaAs is a compact and robust InGaAs single-photon detector module designed for high-performance photon counting in the 900–1700 nm range. It features a built-in integrated counter, eliminating the need for external electronics and simplifying system setup, delivers precise and reliable photon detection. Ideal for LIDAR, quantum communication, and time-correlated photon counting, the AD300 offers laboratory-grade performance in a portable, field-ready package.
| Specifications | Parameter | Value |
|---|---|---|
| Features | Tunable temperature of the diode (down to –40 °C) Low dark and after pulsing rates Software included FC/PC connector | |
| Applications | QKD; LIDAR; Fluorescence Lifetime Imaging | |
| Power | Single | +5V |
| Photodiode | Wavelength | 900 nm - 1700 nm |
| Breakdown Voltage | 60 V - 80 V | |
| Quantum Efficiency | 1550 - 80% | |
| Photon Detection Efficiency (PDE) | 1550nm: PDE 1-22%, adjustableAdjustable PDE | |
| Dark Count Rate | 675 cps@10% // 1000 cps@15% // 1500 cps@20% // from 100cps with min PDE | |
| Deadtime | The detector’s dead time is adjustable. Value is 1us - 1ms | |
| Output pulse | 25 ns | |

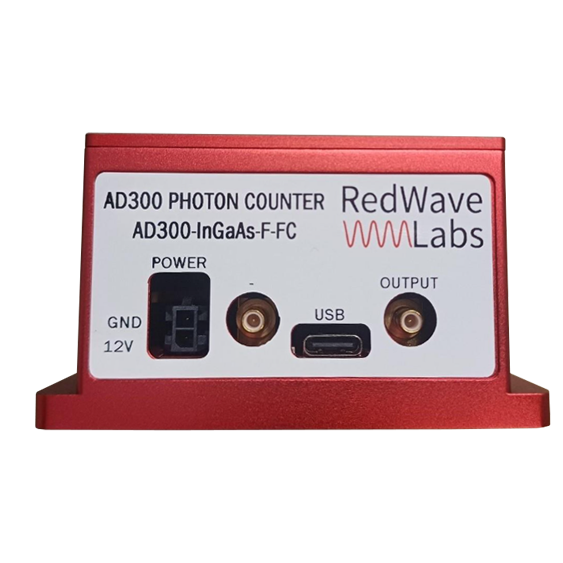

| Connectors | Molex 2 PIN | |
| SMB | ||
| USB TYPE C | ||
| SMB | ||
| Weight | 350 g | |
| Storage Temp | -40 to 85 C | |
| Operating Temp | -40 to 45 C |
Time Tagger Q420
Time Tagger Q400 is a PCIe ¾ length card that works within an x64 Linux computer. Four count inputs and a fifth input for a frame or synchronisation input.
Quantum Control & Integration Platform
Incl. offset- and line-lock for PNT, Atomic clocks, Laser frequency stabilization.

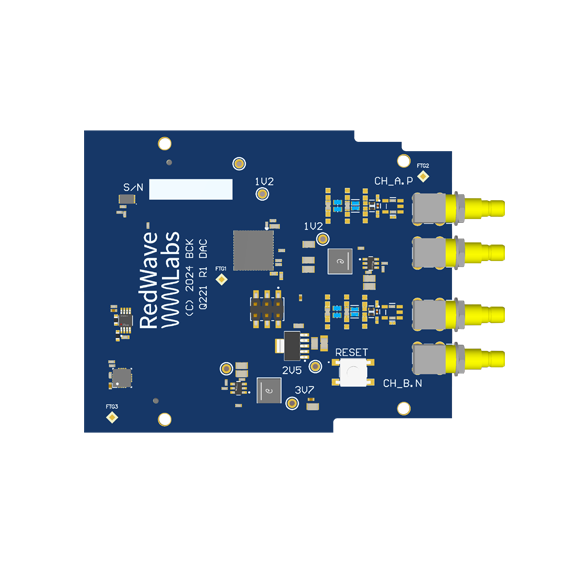

DAC board Q221
