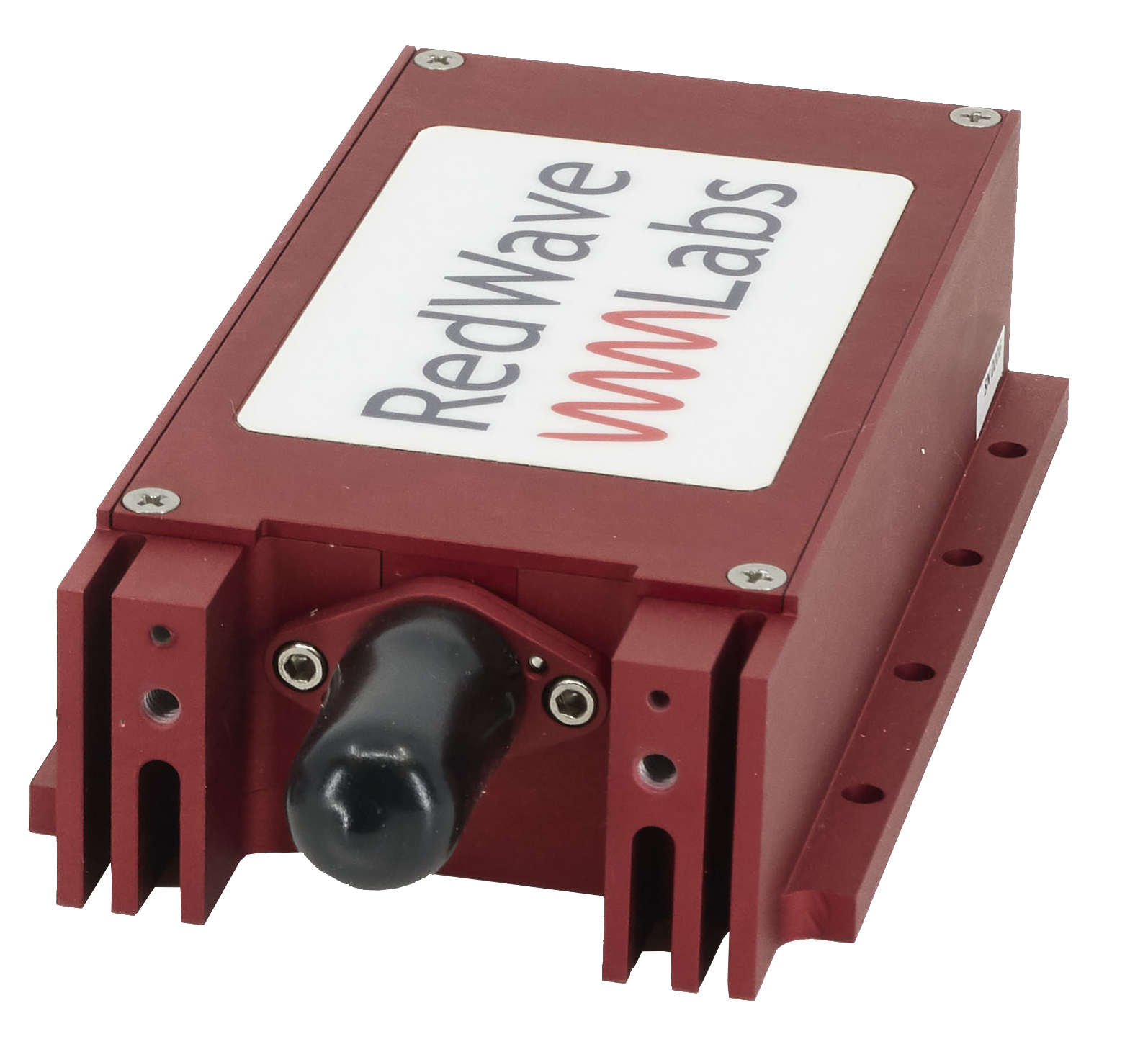

AD200 is a compact and affordable single-photon detector module with a built-in counter. The AD200 is based on a reliable silicon avalanche photodiode sensitive in the visible spectral range. The detector of the AD200 has high efficiency values in the near visible region (around 650 nm). The AD200 features active quenching and full digital temperature control. A separate power supply is provided as standard.
| Applications | Time correlated single photon counting Single molecule detection Laser scanning microscopy Particle physics Spectrophotometry | |
| Applications | 70% quantum efficiency at 650 nm 55% quantum efficiency at 800 nm Tunable temperature of the diode Low dark and after pulsing rates Software included | |
| Specifications | Parameter | Value |
| Power | Single | +12 V |
| Photodiode | Wavelength | 400 – 1100 nm |
| Breakdown Voltage | 125V@ 25C | |
| Active Area | 500 μm | |
| Single-Photon Detection Probability | At 650nm | 70% |
| At 800nm | 55% | |
| Dark Count Rate | 25 @ -20C, typical | |
| Deadtime | 40 ns | |
| Output pulse | 40 ns | |

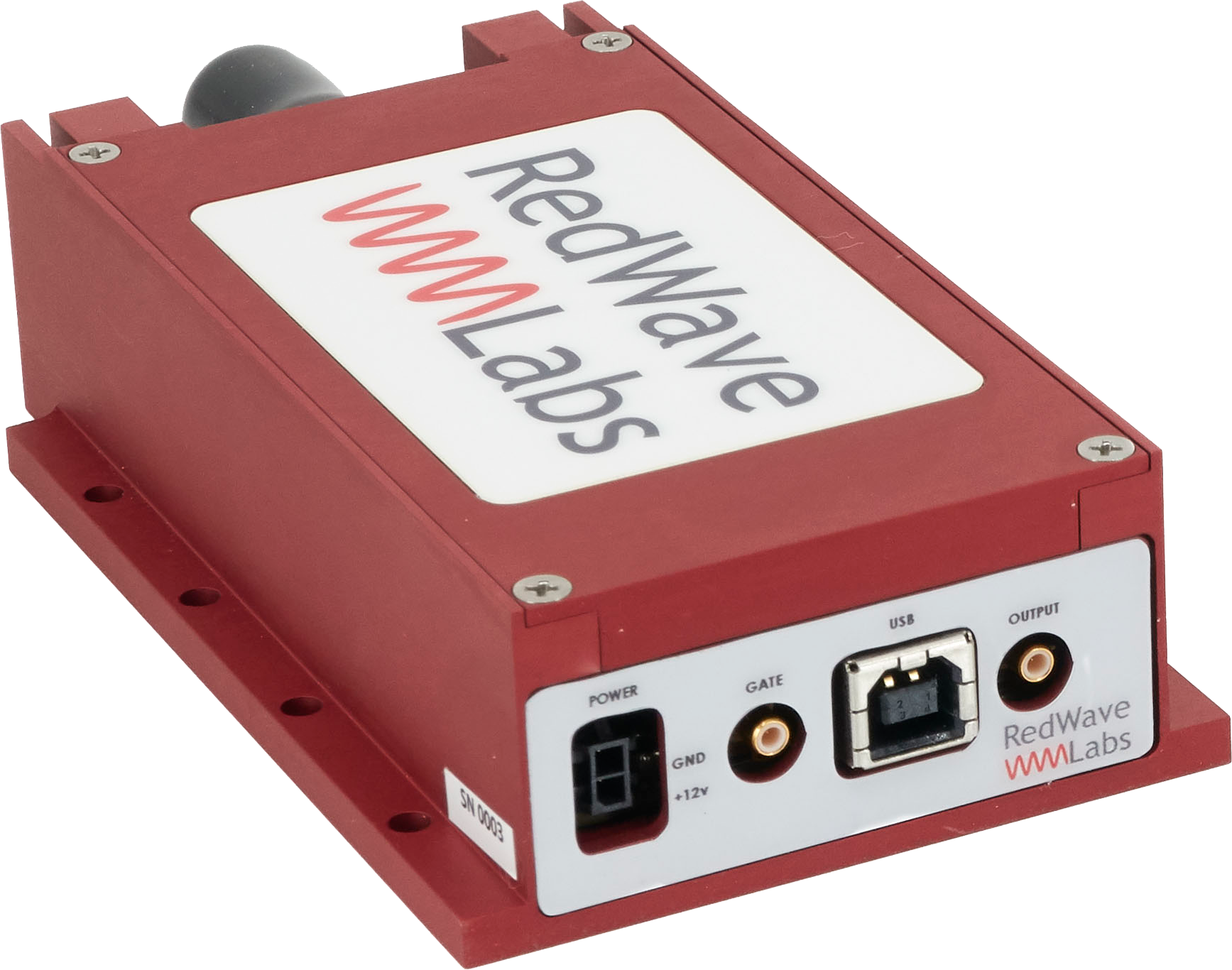

| Connectors | Power | Molex 2 PIN |
| Output | SMB | |
| USB | USB TYPEB | |
| Timing Gate | SMB | |

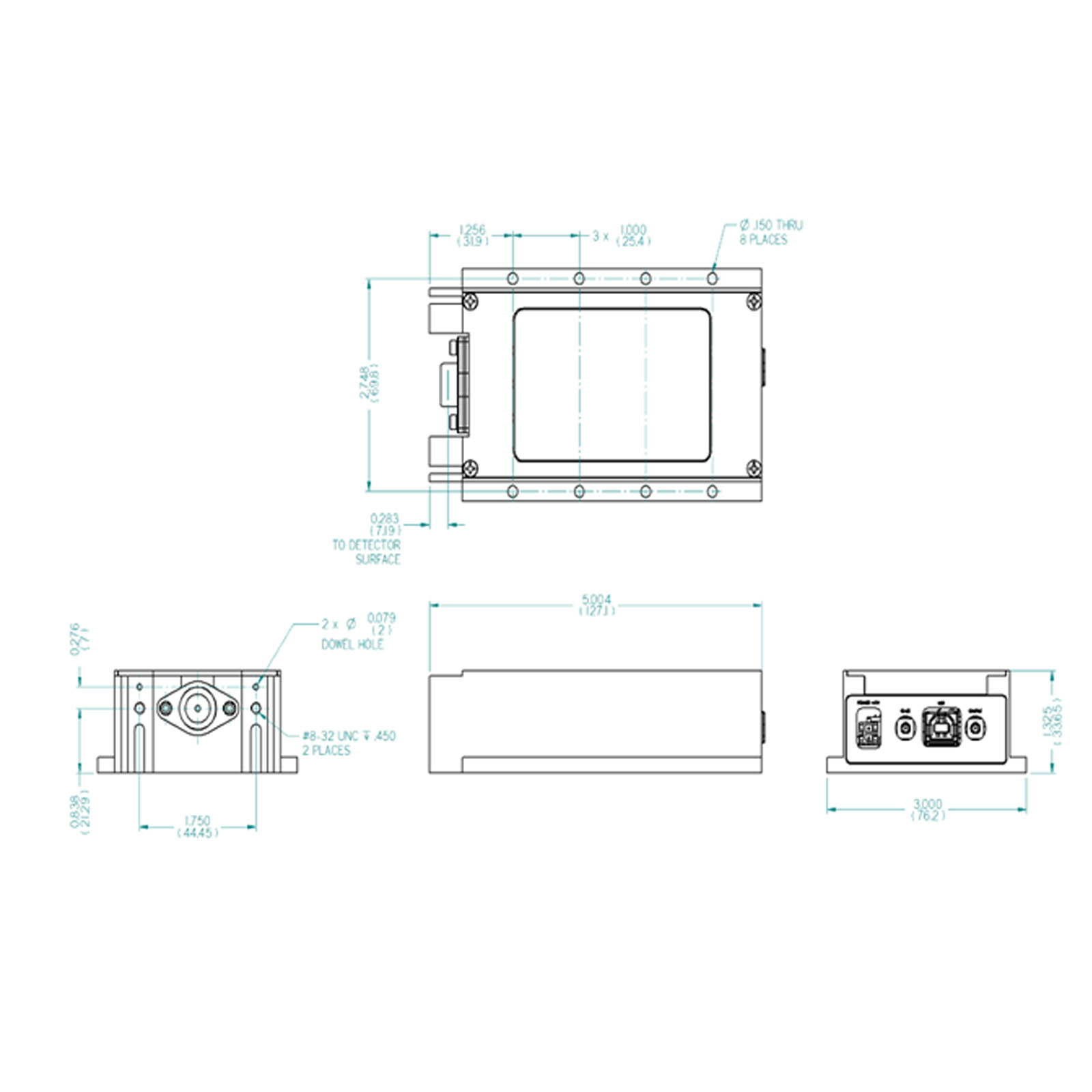

| Dimensions (WxHxD) | 120 x 92 x 30 mm | |
| Weight | 350 g | |
| Storage Temp | -20 to 85 C | |
| Operating Temp | -20 to 60 C |
