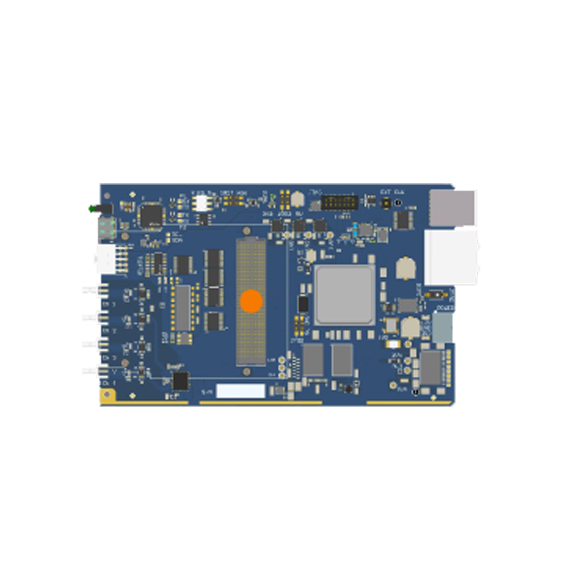

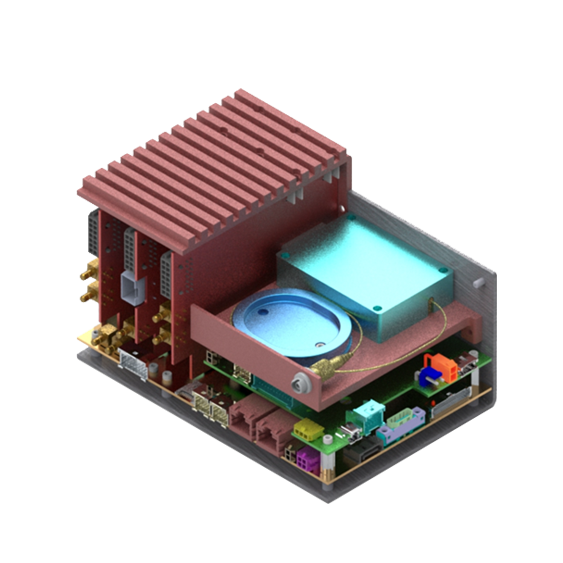

The Redwave Labs Q210 is a PXIe format card that supports the addition of standard FMC cards. A Zynq dual ARM System on Chip can be programmed from either PCIe or USB.
The system is driven from a state machine inside an FPGA allowing for time-synchronous pulse sequences to be emitted.
The dual-arm processor and DRAM allow it to be used as a stand-alone device.
Multiple devices are synchronised with a common clock and trigger lines. Extra isolated GPIO allows control and triggering by external devices.
| Specifications | Parameter | Value |
|---|---|---|
| Features | Digital output sequencer with 4ns resolution Sequencer can hold up to 1024 instructions PXIe trigger single and star configuration Eight GPIO for synchronisation of other devices Zynq dual arm processor and USB allows stand-alone mode | |
| Applications | Acousto-Optical modulation (AOM/AOD) for switching Quantum Key Distribution (QKD) Quantum computing Quantum sensing Optical communications Software Defined Radio (SDR) Advanced Radar application | |
| Power | Dual | +12 V, 1A from PXIe or external; +3V3 1A from PXIe or external |
| Clock Sources | Single-ended | 10MHz PXI clock or 25MHz internal clock |
| Trigger and GPIO | Triggers | PXIe triggers 0-7 or star trigger |
| GPIO | Molex microfit 10 way Up to 8 input or 8 output with various isolation | |
| Connections Back Panel | PXI XJ4 power, trigger and GA; PXI XJ3 PCIe, SMBus, and clocks | 1x Gen 2 PCIe; 1x 10MHZ Clock; Trigger to synchronise state-machine |
| Power | Molex microfit or power from backplane | |
| Connections Front Panel | USB C | Programmable side commands or JTAG connection. |
| Clock | 1x SMB.1GHz sinusoidal. Max 3dBm | |
| ADC In | 4x SMB 1MSPS max 0-5V | |
| Dimensions | W x H x D | 160 x 100 x 60mm (2 slot PXIe 3U) |
| Weight | 300 g | |
| Storage Temp | -40 to 85 C | |
| Operating Temp | -20 to 85 C |
DAC board Q221
DAC board is an FMC module that provides two channels of high-speed analogue output. It utilizes the DAC3482 from Texas Instruments.
RF Generator Q210/20
PXIe format card that generates 3 channels of RF output from 1-400MHz using DDS. Additional envelope shaper with >70dB dynamic range uses feedback to ensure transform limited pulses can be obtained.
TIME TAGGER Q400
Time Tagger Q400 is a PCIe ¾ length card that works within an x64 Linux computer. Four count inputs and a fifth input for a frame or synchronisation input.

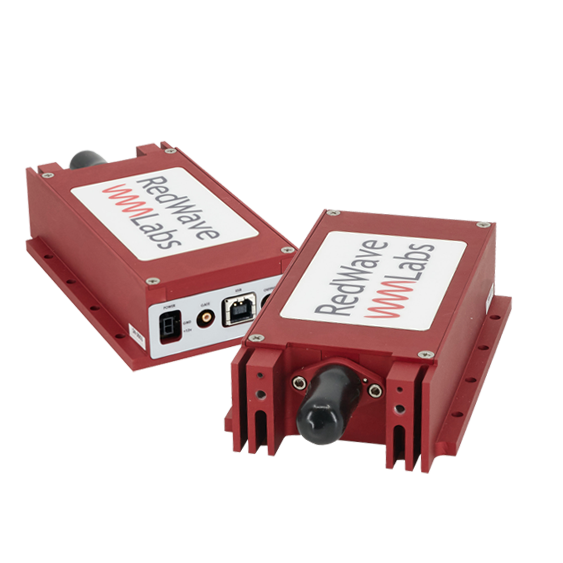

AD200 Single photon detector AD200
