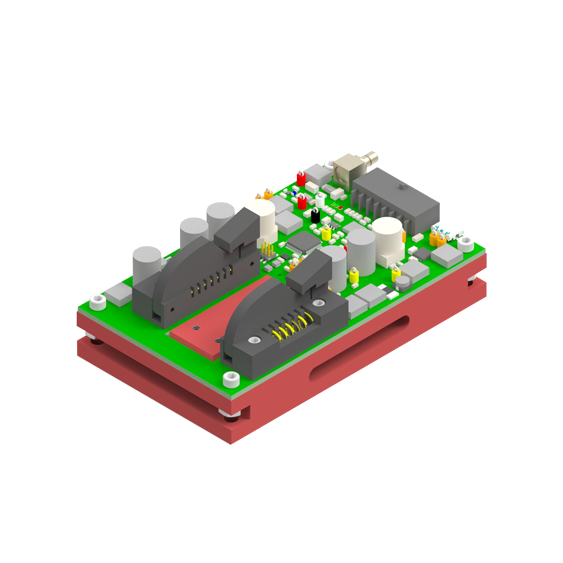

The C490 combines an integrated temperature driver and laser driver with full external digital control in one package.
C490 has low current noise for laser current coupled with high efficiency. In addition, external and internal trigger mode are available for pulsed operation. C490 works seamlessly from low duty operation to CW mode.
C490 has full digital temperature control with current and voltage limits. All features can be controlled via USB with SCPI interface.
| Specifications | Parameter | Value |
|---|---|---|
| Power | Single | 5V /3A |
| Laser Current Control | Laser current | 0 - 2A. Software current and voltage limit. |
| Compliance voltage | > 3.5 V | |
| Setting accuracy | 2 % fs | |
| Noise (RMS) | < 0.2% | |
| Current rise fall time | < 100 ns | |
| Laser External Control | Trigger | External and internal |
| Trigger impedance | 10 kOhm | |
| Trigger Jitter | 20 ns | |
| Interlock | Yes | |
| TEC control | TEC current | 0 … ± 2.5 A |
| TEC voltage | > 3,5V | |
| Max output power | 10 W | |
| Current limit | Software limit | |
| Input sensor | Thermistor 2,2—100 kOhm | |
| PID control | Digital PID control | |
| Connectors | Laser | Integrated Azimuth Electronics 14 pin connector with heat sink. |
| Power | Molex MicroFit 8 pin. | |
| Control | Molex MicroFit 12 pin. | |
| Dimensions (WxHxD) | 101.4 x 36.67 x 61.4 mm | |
| Weight | 200 g | |
| Storage Temp | -55 to 100 C | |
| Operating Temp | -40 to 85 C |
C460 Ultra-short pulsed laser driver
100ps to 200ns; 500mA ( up to 5V compliance) or 300mA(up to 10V compliance)

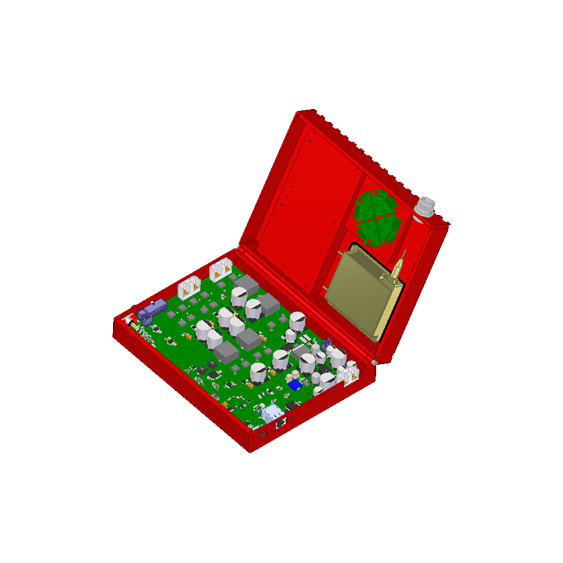

Universal platform for spectroscopic instruments
Universal platform for spectroscopic instruments and absorption spectroscopy application, quantum application

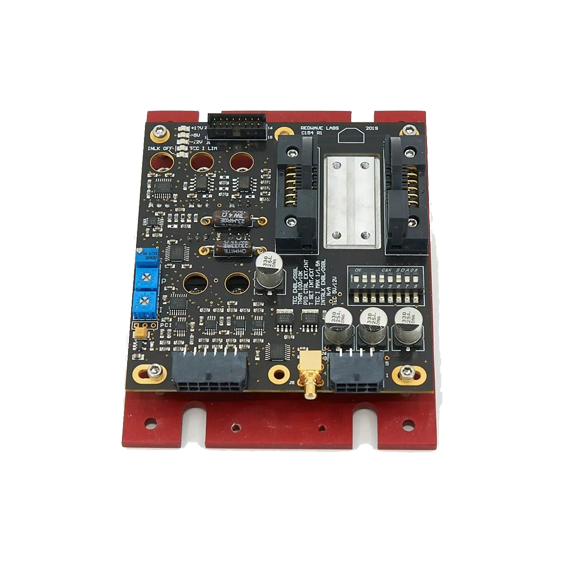

C154 Laser Controller
