In Stock

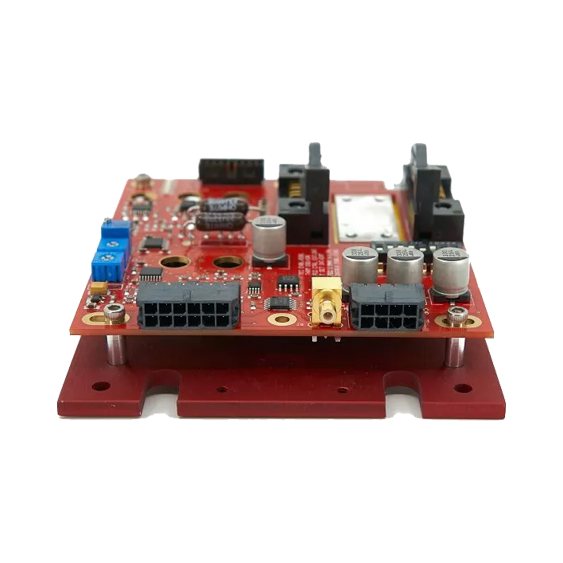

C150 Laser Controller

incl. TEC controller. Laser controller: 0 – 250 mA; > 4.0 V. TEC: 0 … +- 1.0 A /1.5A; voltage > 8.0 V

Pay attention to Pin Layout compatibility!

$898

The Laser Controller C150 combines an integrated temperature driver and laser driver in one package. Temperature control is fully linear; a separate power supply can be used for the laser TEC. TEC control can be via the built-in PI loop or an external signal. The laser driver has an analog bandwidth of 250 kHz; a separate fast TTL compatible switching is provided via a SMB connector. The laser current has a hardware limit of 250 mA which cannot be exceeded without customization.

Pay attention to Pin Layout compatibility!

C150 Laser Controller promo

C150 Laser Controller Manual

Parameter	Description	C150
Examples of Compatible Diodes		NEL/NTT
Power	Dual	Option 1: +12V/2A or-12V/0.5 A Option 2: +12V/0.5A or-12V/0.5A or +5V/1.5A
Laser Current Control	Laser current	0 - 250 mA. Hardware limit. Can be modified for customized versions
	Compliance voltage	> 4.0 V
	Setting accuracy	2 % fs
	Noise (RMS)	< 2µA
	Drift	< 20 µA
	Temperature coefficient	50 ppm/C
	Current limit	250 mA
	Setting accuracy of current limit	2 % fs
Laser External Control	Voltage range	0 --> 10 V
	Input impedance	10 kOhm
	Modulation coefficient ( I const )	20 mA/V
	3dB Bandwidth	DC … 250 kHz
	TTL modulation, rise / fall-time	250 ns
	Interlock	Yes
TEC control	TEC current	0 … +- 1.0 A /1.5A
	TEC voltage	> 8.0 V
	Max output power	12 W
	Current limit	1A or 1.5 A
	Input sensor	Thermistor 10 kOhm or 100 kOhm at 25 C
	PID control	Internal PI control or External direct TEC current control
Connectors	Laser	Integrated Azimuth Electronics 14 pin connector with heat sink. NEL DFB laser pinout. Can be replaced with optional DB15 connector.
	Power	Molex MicroFit 8 pin.
	Control	Molex MicroFit 12 pin.
Dimensions (WxHxD)		120 x 92 x 30 mm
Weight		350 g
Storage Temp		-55 to 100 C
Operating Temp		-40 to 85 C

Parameter	Description	C150	C151	C154	C158	C190
Examples of Compatible Diodes		NEL/NTT	TOPTICA (EAGLEYARD)	NANOPLUS	on request	Sheaumann
Power	Dual	Option 1: +12V/2A or-12V/0.5 A Option 2: +12V/0.5A or-12V/0.5A or +5V/1.5A	Option 1: +12V/2A or +12V/0.5A Option 2: +5V/1.5A; -12V/0.5 A	Option 1: +12V/2A or +12V/0.5A Option 2: +5V/1.5A; -12V/0.5 A	Option 1: +12V/2A or +12V/0.5A Option 2: +5V/1.5A; -12V/0.5 A	+5 V, 1.5 A;
Laser Current Control	Laser current	0 - 250 mA. Hardware limit (possible up to 500 mA)	0 - 250 mA. Hardware limit (possible up to 500 mA)	0 - 250 mA. Hardware limit (possible up to 500 mA)	0 - 250 mA. Hardware limit (possible up to 500 mA)	0 - 500 mA.
	Compliance voltage	> 4.0 V	> 4.0 V	> 4.0 V	> 4.0 V	0.8- 3.0 V
	Setting accuracy	2 % fs	2 % fs	2 % fs	2 % fs	2 % fs
	Noise (RMS)	< 2µA	< 2µA	< 2µA	< 2µA	<0.5%
	Drift	< 20 µA	< 20 µA	< 20 µA	< 20 µA	1 µs –CW
	Temperature coefficient	50 ppm/C	50 ppm/C	50 ppm/C	50 ppm/C	50 ppm/C
	Current limit	0 - 250 mA	0 - 250 mA	0 - 250 mA	0 - 250 mA	0 - 500mA
	Setting accuracy of current limit	2 % fs	2 % fs	2 % fs	2 % fs	External and internal
Laser External Control	Voltage range	0 --> 10 V	0 --> 10 V	0 --> 10 V	0 --> 10 V	0 --> 5V
	Input impedance	10 kOhm	10 kOhm	10 kOhm	10 kOhm	10 kOhm
	Modulation coefficient ( I const )	20 mA/V	20 mA/V	20 mA/V	20 mA/V	100 mA/V
	3dB Bandwidth	DC … 250 kHz	DC … 250 kHz	DC … 250 kHz	DC … 250 kHz	3 ns, electrical
	TTL modulation, rise / fall-time	250 ns	250 ns	250 ns	250 ns	100 ns
	Interlock	Yes	Yes	Yes	Yes	Yes
TEC control	TEC current	0 … +- 1.0 A /1.5A	0 … +- 1.0 A /1.5A	0 … +- 1.0 A /1.5A	0 … +- 1.0 A /1.5A	0 … +- 1.5A
	TEC voltage	> 8.0 V	> 8.0 V	> 8.0 V	> 8.0 V	> 3.0 V
	Max output power	12 W	12 W	12 W	12 W	4 W
	Current limit	1A or 1.5 A	1A or 1.5 A	1A or 1.5 A	1A or 1.5 A	1.5 A
	Input sensor	Thermistor 10 kOhm or 100 kOhm at 25 C	Thermistor 10 kOhm or 100 kOhm at 25 C	Thermistor 10 kOhm or 100 kOhm at 25 C	Thermistor 10 kOhm or 100 kOhm at 25 C	Thermistor 10 kOhm or 100 kOhm at 25 C
	PID control	Internal PI control or External direct TEC current control	Internal PI control or External direct TEC current control	Internal PI control or External direct TEC current control	Internal PI control or External direct TEC current control	Internal PI control or External direct TEC current control
